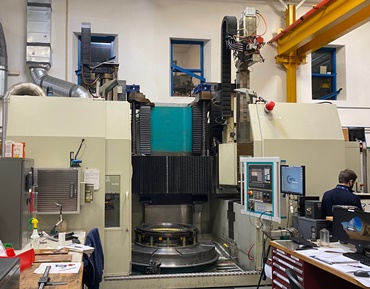

USED WEBSTER AND BENNETT R72RC CNC VTL
USED WEBSTER & BENNETT R72RC 7 AXES CNC VTL  (2007)
Seimens 840D Control
7 Axes
30 ATC - Live & Static
Acoustic Vib Control-Dittel System
Rotary & Fixed Point Dressers
Renishaw Part Probing
Independant Scale System
Functions Include:
   Turning, Grinding, Drilling & Tapping
Coolant System
Manuals
380-420 3ph 50hz 110kva
Table Diameter
70" (1800mm)
Swing
86" (2200mm)
Max. Table Load
29,700 lbs
Table Type
4 Jaw Ind. Chuck
Grinding Spindle:
Spindle Stroke
46"(1185mm)
Spindle Rotation
+/- 22.5 Deg.
Speed
4000 rpm
Ram Diameter
7"(180mm)
X Axis Feedrate
0-5000mm/min.
Spindle Motor
15 hp
Live/Static Spindle:
Spindle Stroke
53"(1358mm)
Ram Size
7.8"x7.8"
Speed
3000 rpm
Motor
20 hp
X Axis Feedrate
0-5000mm/min.
X Axis Movement
62"(1597mm)
Arbour Size
HSK-A80
Machine Weight
70,400 lbs
BELL MACHINERY LTD.
HEAD OFFICE: UNIT 106-758 COPPING ST.  NORTH VANCOUVER, BC CANADA V7M 3G6
PHONE: 604-988-6169    FAX: 604-988-4811    email:
bellmachinery@gmail.com

PRICE:  EX-SITE RICHMOND,BC ------------ $ 250,000.00 CDN
PURCHASER IS RESPONSIBLE FOR MOVING THE MACHINE

EX-AEROSPACE
PAID OVER $ 1,000,000
CAN BE INSPECTED UNDER POWER
