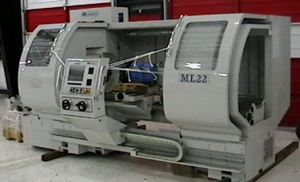

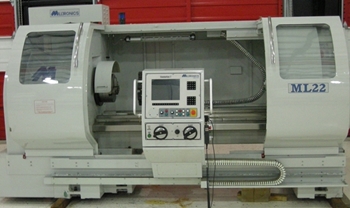

USED MILLTRONICS
ML22 22" x /60"
CNC/MANUAL LATHE
| Swing over Bed | 22" |
| Swing In Gap | 31" |
| Bed Length | 63.5" |
| Swing over Crosslide | 12.2" |
| Spindle Bore | 4" |
| Spindle Mount | A2-8 |
| Speeds(Infin Var)) | 80-3500 |
| Motor | 22 hp |
| Weight (Approx) | 10,000lbs |
FEATURES AND EQUIPMENT INCLUDED:
Centurion T PC Based Control
Manual or Full CNC
10" Colour LCD Screen with Tool Path, Part Graphics & Tactile Keys
Double Door Full Enclosure
Automatic Lubrication
Precision Ground Ball Screws
Hardened & Ground Way Surfaces
Chip Drawer
Tailstock
Chuck Guard & Door Interlock Safety Switch
Automatic Home Sequence
Manuals
220/3/60 Electrics
| PRICE: |
SOLD |
| INCLUDES: |
SOFTWARE PACKAGE A:
| 1.Spindle Load Meter | |
|
2.Constant Surface Speed With Threading Cycles |
|
|
3.Rigid Tap Cycle |
|
|
4. 8 Mb Program Execution Memory Incl Large Program Management Software |
|
| 5. 1.44Mb Floppy Disk | |
CONVENIENCE PACKAGE B:
| 1.Dual Electronic Handwheel For Teach,Manual or Auto Op |
|
2.Additional 10Mb Parts Storage (12Mb Total) |
| 3.LCD Hour Meter |
| 4. Work Lamp |
| 5.End Of Cycle Light |
| 6.Single Spare "M" Function & CNC "Wait" Channel |
| 7.Steady Rest - Roller (.75" - 7.8") |
| 8.Follower Rest - Brass Tips (.4" - 4") |
| 9.Tailstock Latch and Auto Position |
PERFORMANCE PACKAGE C:
| 1.Upgrade to Two Speed WYE/Delta Spindle Drive |
|
2.Remote Electronic Handwheel Unit |
|
3. Networking Option c/w 30 Days Phone Support |
|
4. Auto Import of DXF Files Conversion Software |
| 5. Programming Parameter for Front & Rear Turret Program |
| 6. Off-Line LatheCAM Software for Programming & Training |
HIGH SPEED LARGE PROGRAM PACKAGE D:
| 1. Solid State, Non-Volitile, Memory Upgrade to 256Mb |
|
2. Zip Drive |
|
3. Additional 16Mb Program Execution Memory |
|
4. "S" Curve Accel/Decel ramp Modifier |
| 5. Feed Forward & Look Ahead For Non-Corner Rounding |
OTHER ACCESSORIES:
| Automatic 8 Station Turret - 1" Riser | |
| 12" 4 Jaw Chuck | |
SUPERB CONDITION
| DELIVERY: | STOCK - SUBJECT TO PRIOR SALE |
|
SALES TAXES : |
Extra As Applicable. |
** PRICES IN CANADIAN DOLLARS **
