NEW  SUPERTEC G25P CYLINDRICAL GRINDER

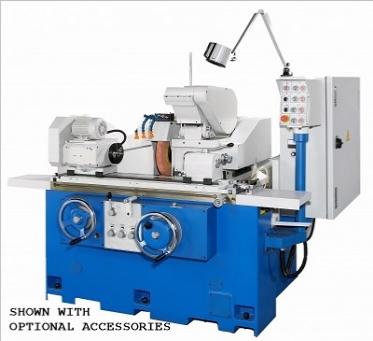

NEW SUPERTEC G25P CYLINDRICAL GRINDER (TAIWAN)
Swing Over Table
10.2"
Centre Distance
20"
Max. Grindng Diameter
10"
Max. Table Load
176 lbs
Wheel Dia Dia x W x B
16" x 2" x 5"
Swivelling Angle R&L
+/- 30 Deg
Infeed Travel
5.3"
Handfeed Travel
3.5"
Topslide Travel
7"
Wheel Spindle Motor
5 hp
Electrics
230/3/60
Weight
6,100 lbs
Sturdy Workead offer 4 Var Speeds:
      From 50-500rpm & Swivels +/-45'
3MT Robust Taisltock With Hard Sleeve
Cartridge Type Wheel Spindle With
   4 class 7 Super Prec Ang Bearings
One V and One Flat Hand Scraped
   Guideway, Trucite Coated & Autolube
Univ Table with Vari Speeds can
   Swivel to 7' either direction
Autolube system For
      Leadscrews & Slideways
PLC Menu Driven LCD Control
Halogen Light
220/3/60 Electrics
QAI Certified to CSA SPE 1000
Manual
PRICE:     FOB BELL MACHINERY WAREHOUSE             $   P.O.R.
