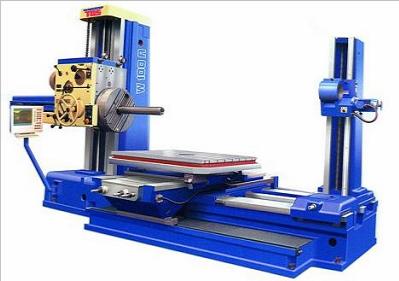

NEW  Re-TOS W100A HORIZ. BORING MILL
NEW ReTOS FACTORY REBUILT W100A HORIZ BORING MILL
Precision Positioning of Rotary Table
      (4 x 90') By Optical Projection Reading
Power Tool Clamping
Turcite on Cross & Long Surfaces
Guideways of Bed & Slide are Lined
     Lined With Hardened Steel Strip
Spindle & Faceplate Speeds Can
     Operate togehter or Seprately
Central Lubriaction System
Sliding Telescopic Guards
Thread Cutting Attachment (Inch/Met)
Built-In Faceplate
Coolant System
220/3/60 Electrics
QAI Certified to CSA SPE 1000
Manual
PRICE:
FOB BELL MACHINERY WAREHOUSE
$  P.O.R.
Working Table Size
49" x 49"
Table Indexing (360')
1 Degree/Div
Max. Table Load
6,600 lbs
Longitudinal Travel (X)
63"
Cross Travel (Z)
49"
Spindle Vert Travel (Y)
44"
SpindleTravel (W)
35"
Spindle Taper
ISO 50
Spindle Diameter
4"
Spindle Speeds (23)
7.1 - 1120 rpm
Spindle Motor
15 hp
Electrics
230/3/60
Weight
31,000 lbs
