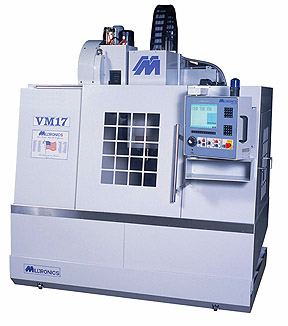

NEW MILLTRONICS
VM-17
VERTICAL
MACHINING CENTER
| Cross Travel |
16" |
| Head Travel |
26" |
| Throat Distance |
16" |
| Speeds (Var.) |
100-8000 |
| Spindle Taper |
40 |
FEATURES
AND EQUIPMENT INCLUDED:
PC
Based CPU
Air/Oil
Pressurized Auto Lube For Ball Screws
And Linear Rails
Precision
Ground Table Surface
5
Axes
Simultaneous Interpolation Software &
Interface (Servos Extra)
24
Pocket High Speed Double Arm ATC
Soft
Start High Speed Saddle Metal Way Covers
12"
LCD Active Matrix Colour Display
Spindle
Taper BlowOut
Automatic
Metered Lubrication System
Front
Panel Mounted Electronic Handwheel Plus Handwheel Controlled
Program Execution
Swivel
Operator's Station
Full
Sheet Metal Enclosure With Lights
Tool
Release Button
Rigid
Tap
Air
Blast Hose
Wash
Down Hose
26"
Z Axis Travel
Precision
Ground Table & Critical Mating Surfaces
Heavy
Duty Liner way Constrction - 35mm Rails
Six
Nozzle High Volume Coolant Systems
Conversational
plus G & M Code Programming with 3-D
Heavy
Duty 35mm Liner Way Construction
Chip
Drawer
Manuals
220/3/60
Electrics
INCLUDES
ON SITE START UP AND TRAINING FROM FACTORY TECHNICIAN
| PRICE: FOB VANCOUVER, BC |
|
$ 86,900.00 |
| |
|
|
SOFTWARE
PACKAGE A:
|
1.
Spindle Load Meter
|
|
$
560.00
|
|
2.
Additional 10Mb Parts Storage Memory (12Mb Total)
|
|
$
1,120.00
|
|
3.
Engraving, Auto Routines, User Definable Macros &
Intersection Trig Assist, Helical Interpolation, 3D Mill Cycle |
|
$ 1,260.00
|
|
4.
LCD Hour Meter
|
|
$
420.00
|
|
5.
Coordinate Rotating, Scaling, Mirror Image
|
|
$
1,120.00
|
|
6.
8Mb Extended Program Execution Memory with
Management Software |
|
$ 1,400.00 |
|
7.
Single Spare "M" Function & CNC "Wait" Channel
|
|
$
420.00
|
| 8. 1.44 Mb Floppy Drive |
|
$ 700.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$ 7,000.00 |
| PACKAGE PRICE: |
|
$ 2,800.00 |
CONVENIENCE
PACKAGE B:
|
1,
Chip Washdown System |
|
$
1,960.00
|
|
2.
Remote Electronic Handwheel
|
|
$
1,680.00
|
| 3. End of Cycle Light |
|
$ 420.00 |
|
4.
Chip Auger System |
|
$ 3,220.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$
7,280.00 |
| PACKAGE PRICE: |
|
$ 5,600.00 |
PERFORMANCE
PACKAGE C:
1.
Upgrade to 2 Speed 30/25hp WYE, Delta Spindle Drive
System |
|
$
4,200.00
|
2.
Networking Option with 30 Days Phone Support
|
|
$
1,260.00
|
| 3. Auto Import of DXF Files Conversion
Software |
|
$ 700.00 |
4.
Off-line FastCAM Software for Programming & Training |
|
$ 560.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$ 6,720.00 |
| PACKAGE PRICE: |
|
$ 5,600.00 |
HIGH
SPEED LARGE PROGRAM PACKAGE D:
| 1. Solid State,
Non-Volatile, Memory Upgrade to 256Mb |
$1,680.00 |
|
2.
Zip Drive
|
$
980.00 |
|
3.
Additional 16Mb Program Execution Memory
|
$1,400.00 |
|
4.
Feed Forward & Look -A For High Speed or 3D Milling
|
$1,680.00 |
| 5. "S" Curve
Accel/Decel Ramp Modifier |
$1,260.00 |
|
SUB-TOTAL
IF PURCHASED SEPARATELY
|
$7,000.00 |
| PACKAGE PRICE: |
$5,600.00 |
ACCESSORIES
FOR GRAPHITE OR ABRASIVE MATERIALS:
| 1. Pressurized Air/Oil Purge
System for Liner Rails & Ball Screws |
$2,800.00 |
|
2.
Troit Vacuum System DFT2-2-MILL
|
$12460.00 |
|
3.
Dust Collector Guard & Hose
|
$
560.00 |
|
4.
Spindle Speeds Higher Than 15,000 rpm
|
T.B.A. |
NOTE:
ACCESSORIES CAN BE PURCHASED SEPARATELY
ADDITIONAL
ACCESSORIES:
1.
Coolant Through Spindle |
|
$12,460.00
|
|
2.
Upgrade Carousel Type ATC to 24 Pocket Double Arm Style |
|
$ 6,860.00
|
|
3.
Upgrade to 12,000 Ceramic Bearing Spindle |
|
$ 5,460.00
|
|
4.
Upgrade to 15,000 Ceramic Bearing Spindle |
|
$ 6,860.00
|
|
5.
Upgrade From Chip Auger System to Chip Conveyor |
|
$ 1,960.00
|
|
6.
Coolant Loop Electronic Spindle Chiller |
|
$ 3,640.00
|
|
7.
4th Axis Servo Amplifier
|
|
$
5,460.00
|
| 8. 6" Rotary Table c/w 4th Axis Amp
& Motor |
|
$12,460.00 |
| 9. 9" Rotary Table c/w 4th Axis Amp
& Motor |
|
$15,260.00 |
| 10. Tailstock For Rotary Table |
|
$ 1,260.00 |
| 11. Extended Parts Warranty From One to
Two Years |
|
$ 4,200.00 |
Complete
Accessories List Upon Request
| SALES TAXES : |
Extra As Applicable. |
**
PRICES IN CANADIAN DOLLARS **
