NEW EQUIPMENT
USED
EQUIPMENT
NEW TOOLING
& ACCESS
| |

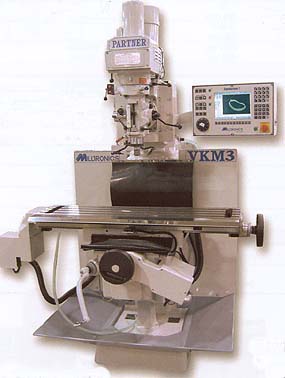

NEW MILLTRONICS
VKM3
CNC/MANUAL
VERTICAL
TURRET MILLING MACHINE
| Cross Travel |
15" |
| Vertical Travel |
18" |
| Speeds (Var.) |
60-4500 |
| Spindle Taper |
CT 30 |
FEATURES
AND EQUIPMENT INCLUDED:
AC
Frequency Spindle Drive
Centurion
7 3 Axis Control
(Conversational Interface,
Including Programmable RPM)
CNC
or Manual
Square
Box Ways Y axis & Knee
Auto
Lube System
Leveling
Screws
Backlash
Adjustment
Manuals
| PRICE: FOB VANCOUVER, BC |
|
$ 35,950.00 |
| |
|
|
SOFTWARE
PACKAGE A:
|
1.
Spindle Load Meter
|
|
$
560.00
|
|
2.
Engraving, Auto Routines, User Definable Macros
&
Intersection Trig Assist, Helical Interpolation
|
|
$ 1,260.00
|
|
3.
Coordinate Rotating, Scaling, Mirror Image
|
|
$
1,120.00
|
|
4.
8Mb Extended Program Execution Memory with Large
Program Management Software
|
|
$ 1,400.00 |
| 5. 1.44 Mb Floppy Drive |
|
$ 700.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$ 5,040.00 |
| PACKAGE PRICE: |
|
$ 2,800.00 |
ACCESSORY
PACKAGE B:
1,
Front Mounted Electronic Handwheel Plus Handwheel
Controlled Program Executin |
|
$ 1,400.00
|
|
2.
Additional 10 Mb Parts Storage Memory (12Mb Total)
|
|
$
1,120.00
|
|
3.
Power Drawbar System
|
|
$
1,680.00
|
| 4. Coolant Drip Pan |
|
$ 1,120.00 |
| 5. Fabric Way Covers in Front & Rear
Saddle |
|
$ 700.00 |
| 6 .Rear Splash Guards |
|
$ 980.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$
7,000.00 |
| PACKAGE PRICE: |
|
$ 5,600.00 |
PERFORMANCE
PACKAGE C:
|
1,
Rigid Tap
|
|
$ 1,680.00
|
|
2.
Single Spare "M" Function & CNC Wait Channel
|
|
$
420.00
|
|
3.
Flood Coolant System with Programmable On/Off
|
|
$
1,120.00
|
| 4. Quill Position Readout |
|
$
700.00 |
| 5. Upgrade Mechanical Handwheels to
Large Dia Retract Handles |
|
$ 280.00 |
| 6. Work Lamp |
|
$
420.00 |
| 7. LCD Hour Meter |
|
$
420.00 |
| 8. Auto Import of DXF Files Conversion
Software |
|
$
700.00 |
| 9. Off-Line FastCAM Software for
Programming & Training |
|
$
560.00 |
| 10.Non-Descript Pocket Clearing |
|
$
700.00 |
| SUB-TOTAL IF PURCHASED SEPARATELY |
|
$
7,000.00 |
| PACKAGE PRICE: |
|
$ 5,600.00 |
HIGH
SPEED LARGE PROGRAM PACKAGE D:
| 1. Solid State, Non-Volatile,
Memory Upgrade to 256Mb |
$1,680.00 |
|
2.
Zip Drive
|
$
980.00 |
|
3.
Additional 16Mb Program Execution Memory
|
$1,400.00 |
|
4.
Network Option Includes 30 Day Phone Support
|
$1,260.00 |
| 5. Feed Forward &
Look Ahead For Non-Corner Rounding |
$1,680.00 |
|
SUB-TOTAL
IF PURCHASED SEPARATELY
|
$7,000.00 |
| PACKAGE PRICE: |
$5,600.00 |
NOTE:
ACCESSORIES CAN BE PURCHASED SEPARATELY
ADDITIONAL
ACCESSORIES:
|
1.
Change Spindle From CT40 to NMTB40, BT40 |
|
$
140.00
|
|
2.
4th Axis Servo Amplifier
|
|
$
5,460.00
|
| 3. 6.5" Rotary Table c/w 4th Axis
Amp & Motor |
|
$12,460.00 |
|
4.
Upgrade to 12" Colour LCD |
|
$
1,260.00
|
|
5.
Quill Scale Feedback to Update Offset/Position
|
|
$
1,260.00
|
| 6. Remote Cycle Start Button |
|
$
420.00 |
| 7. Upgrade Mechanical Handwheels to
Larger Dia |
|
$
420.00 |
Complete
Accessories List Upon Request
| SALES TAXES : |
Extra As Applicable. |
**
PRICES IN CANADIAN DOLLARS **
BELL
MACHINERY LTD.
246
EAST 1st AVE.
VANCOUVER,
BC
CANADA
V5T
1A5
PHONE:
(604) 322-6169
FAX: (604) 321-1811
E-MAIL:
bellmac@telus.net
|
