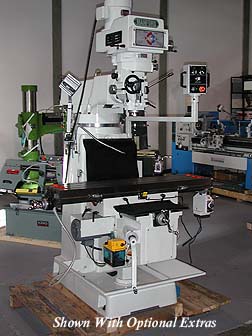

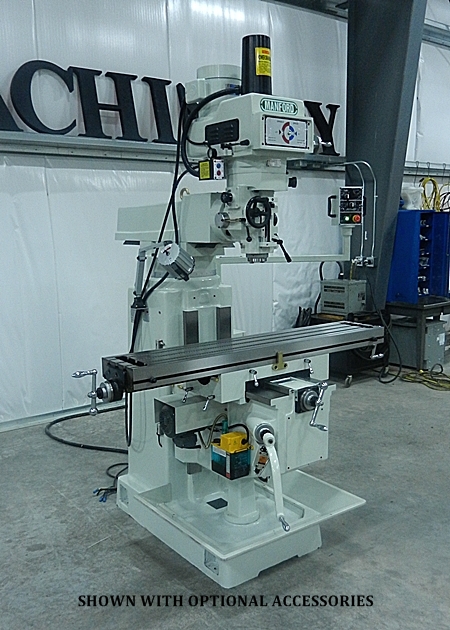

NEW MANFORD
SP-520VS
SUPER
PRECISION
VERTICAL
TURRET MILLING MACHINE
| Cross Travel |
16" |
| Vertical Travel |
17" |
| Speeds (Var.) |
60-4400 |
| Spindle Taper |
40 |
FEATURES
AND EQUIPMENT INCLUDED:
Rapids
on Vertical Travel
Infinitely
Variable 5 HP Head
Centralized
Lube System
Square
Ways on column
Grinding
on Table T-slot
Hardened
& Ground on XYZ Slideways & Table
Spindle
Hardened & Ground
Levelling
Screws
Manual
IN
STOCK
VIDEO BELOW
| PRICE: FOB BELL
MACHINERY LTD. |
52" X 11" |
$ 19,500.00 |
| |
58" X 11" |
$ 19,900.00 |
LEASING
AVAILABLE
OPTIONAL
ACCESSORIES:
|
|
|
|
SINO
2/3 Axis MILL SERIES Digital Readouts
Installed
|
2
Axis
3
Axis
|
$
1,700.00
$
1,900.00
|
|
Acu-rite
2/3 Axis 200M Digital Readouts
Installed
(Additional Features)
|
2
Axis
3
Axis
|
$
3,300.00
$
3,950.00
|
| Servo on X, Axis Feeds - Installed |
Each |
$ 1,595.00 |
| Servo on Y Axis Feeds -
Installed |
Each |
$ 1,695.00 |
| Ton-E on X, Axis Feeds -
Installed |
Each |
$
695.00 |
| Ton-E on Y, Axis Feeds -
Installed |
Each |
$
745.00 |
| Auto Lubrication System |
|
$
395.00 |
| Coolant System & Chip Tray |
|
$
995.00 |
| Power Drawbar |
|
$
890.00 |
| Halogen Light |
|
$
290.00 |
| Vises, Clamp Kits, Cutters, Collet Sets
etc |
|
$ On Request |
MANFORD SUPER
PRECISION VS STANDARD MILLS
|
FEATURE |
MANFORD |
STANDARD MILLS |
|
1. SPINDLE |
HARDENED &
GROUND |
PARTIAL |
|
2. LEAD SCREWS |
HARDENED ON X, Y |
NOT HARDENED |
|
3. TURCITE-B |
ON X,Y WAYS, GIBS |
OPTIONAL |
|
4. TABLE T-SLOT |
GRINDING ON T-SLOT |
NOT GROUND |
|
5. HAND SCRAPING |
16 PT/SQ IN |
8PT/SQ IN |
|
6. LEVELING SCREWS |
YES |
NO |
|
7. WARRANTY |
2 YEAR PARTS
1 YEAR LABOUR
|
1 YEAR PARTS & LABOUR |
|
8. PAINT |
HIGH GRADE AUTO
PAINT |
COMMON PAINT |
INSPECTION
|
INSPECTION ITEMS |
MANFORD |
STANDARD MILLS |
|
1. Run Out of Spindle |
0.00012" |
0.0002" |
|
2. Parallelism of Table Way
to Saddle Movement
|
0.0004" |
0.0008" |
|
3. Table Movement to T-Slot |
0.0008" in
20" |
0.0012" in
20" |
|
4. Traverse of Column
Perpendicularity
|
0.0006" in
12" |
0.0009" in
12" |
|
5. Parallelism of Ram Movement |
0.0006" in 12 |
0.0008" in 12 |
| SALES TAXES : |
Extra As Applicable. |
**
PRICES IN CANADIAN DOLLARS **
|
