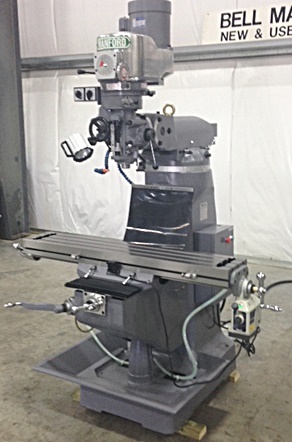

NEW MANFORD
SP-160VS
SUPER
PRECISION
VERTICAL
TURRET MILLING MACHINE
| Cross Travel |
12" |
| Vertical Travel |
16" |
| Speeds (Var.) |
60-4500 |
| Spindle Taper |
R8 |
FEATURES
AND EQUIPMENT INCLUDED:
Infinitely
Variable 3 HP Head
Rubber
Chip Cover
Centralized
Lube System
Levelling
Screws
Manual
VIDEO BELOW
| PRICE: FOB BELL
MACHINERY LTD. |
|
$ 12,500.00 |
|
|
|
OPTIONAL
ACCESSORIES:
|
SINO
2/3 Axis Mill Series Digital Readouts
Installed
|
2
Axis
3
Axis
|
$
1,400.00
$
1,900.00
|
|
Acu-rite
2/3 Axis 200S Digital Readouts
Installed
(Additional Features)
|
2
Axis
3
Axis
|
$
3,400.00
$
4,700.00
|
| Ton-E on X, Y, Z Axis Feeds -
Installed |
Each |
$
695.00 |
| Servo on X, Axis Feeds - Installed |
Each |
$ 1,495.00 |
| Servo on Y or Z, Axis Feeds -
Installed |
Each |
$ 1,595.00 |
| Coolant & Chip Tray |
|
$
995.00 |
| 6" Riser Block |
|
$ 1,275.00 |
| Vises, Clamp Kits, Cutters, Collet Sets
etc |
|
$ On Request |
MANFORD SUPER
PRECISION VS STANDARD MILLS
|
FEATURE |
MANFORD |
STANDARD MILLS |
|
1. SPINDLE |
HARDENED &
GROUND |
PARTIAL |
|
2. LEAD SCREWS |
HARDENED ON X, Y |
NOT HARDENED |
|
3. TURCITE-B |
ON X,Y WAYS, GIBS |
OPTIONAL |
|
4. TABLE T-SLOT |
GRINDING ON T-SLOT |
NOT GROUND |
|
5. HAND SCRAPING |
16 PT/SQ IN |
8PT/SQ IN |
|
6. LEVELING SCREWS |
YES |
NO |
|
7. WARRANTY |
2 YEAR PARTS
1 YEAR LABOUR
|
1 YEAR PARTS & LABOUR |
|
8. PAINT |
HIGH GRADE AUTO
PAINT |
COMMON PAINT |
INSPECTION
|
INSPECTION ITEMS |
MANFORD |
STANDARD MILLS |
|
1. Run Out of Spindle |
0.00012" |
0.0002" |
|
2. Parallelism of Table Way
to Saddle Movement
|
0.0004" |
0.0008" |
|
3. Table Movement to T-Slot |
0.0008" in
20" |
0.0012" in
20" |
|
4. Traverse of Column
Perpendicularity
|
0.0006" in
12" |
0.0009" in
12" |
|
5. Parallelism of Ram Movement |
0.0006" in 12 |
0.0008" in 12 |
| SALES TAXES : |
Extra As Applicable. |
**
PRICES IN CANADIAN DOLLARS **
|
