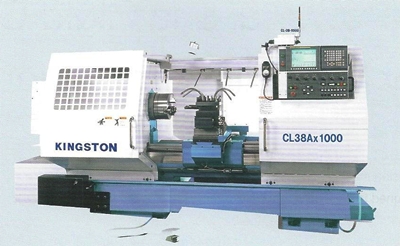

NEW KINGSTON CL38

26" x

40"/60"/80"/120"/160"

CNC FLAT BED LATHE

Swing over Bed 26"
Bed Length 40" TO 160"
Swing over Crosslide 14.6"
Bed Width 18"
Spindle Bore  4.7" OR 7.1"
Spindle Mount A2.11 OR A2-15
Speeds( 4 Ranges ) 6-2000
           Optional 3-1200
Motor 25 /30hp
Weight (approx) 14,000lbs



FEATURES AND EQUIPMENT INCLUDED:



Fanuc OiTD Contrl

V8 Hydraulic turret

Two Doors in Front and full Splas Guard

Auto Lube

Chip Conveyor with Chip Cart

Hydraulic and Manual Tailstock Quill Movement

Coolant System

Steady Rest

Halogen Light

Manuals

4 Way Rapids

220/3/60 Electrics









PRICE: FOB BELL MACHINERY. $  POR









OPTIONAL ACCESSORIES    Available Upon Request


SALES TAXES :



Extra As Applicable.
