NEW FORTWORTH HBM-110 HOR BORING MILL
NEW FORTWORTH HBM-110 HORIZ BORING MILL (TAIWAN)
|
Working Table Size
|
39" x 31"
|
55" x 47"
|
|
Table Indexing (360')
|
1 Degree/Div
|
1 Degree/Div
|
|
Max. Table Load
|
5,500 lbs
|
11,000 lbs
|
|
Longitudinal Travel (X)
|
63"
|
70"
|
|
Cross Travel (Z)
|
49"
|
55"
|
|
Spindle Vert Travel (Y)
|
39"
|
55"
|
|
SpindleTravel (W)
|
15"
|
21"
|
|
Spindle Taper
|
ISO 50
|
ISO 50
|
|
Spindle Diameter
|
4.33"
|
4.33"
|
|
Spindle Speeds (VS)
|
20 - 1000 rpm
|
20 - 1500 rpm
|
|
Spindle Motor
|
20 hp
|
20 hp
|
|
Electrics
|
230/3/60
|
230/3/60
|
|
Weight
|
27,500 lbs
|
33,800 lbs
|
|
Rigged Box Type Column & Base
|
|
Castings Made of High Quality
|
|
Cast Iron & Are Stressed Relieved
|
|
Hardened & Ground Precision Ground
|
|
Box Way: X,Y & Z Axes
|
|
Telescopic Cover For Cross And Long
|
|
Ballscrews X,Y& W Axes
|
|
Counter Weight For Spindle Head Stk
|
|
Pneumatic Clamping System
|
|
Air Powered Drawbar
|
|
Pendant Control for Ease of Use
|
|
Autolube System
|
|
Coolant System
|
|
220/3/60 Electrics
|
|
QAI Certified to CSA SPE 1000
|
|
Manual
|
|
Optional Removable Facing Head Incl
|
BELL MACHINERY LTD.
HEAD OFFICE: UNIT 106-758 COPPING ST. NORTH VANCOUVER, BC CANADA V7M 3G6
PHONE: 604-988-6169 FAX: 604-988-4811 email: bellmachinery@gmail.com
HEAD OFFICE: UNIT 106-758 COPPING ST. NORTH VANCOUVER, BC CANADA V7M 3G6
PHONE: 604-988-6169 FAX: 604-988-4811 email: bellmachinery@gmail.com
HBM-110 HBM-110L
PRICE: F0B BELL MACHINERY -------110-------------- $ 279,000.00

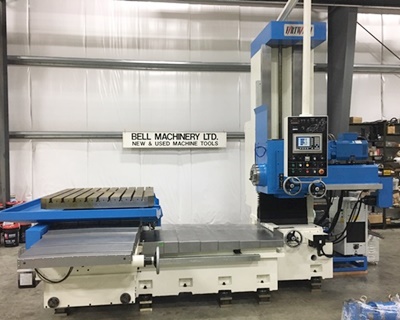

FORTWORTH HBM-110L SHOWN
WITH OPTIONAL ACCESSORIES
WITH OPTIONAL ACCESSORIES

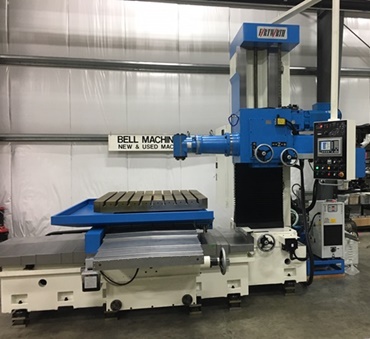

FORTWORTH HBM-110L SHOWN
WITH OPTIONAL VERTICAL HEAD
AND OPTIONAL ACCESSORIES
WITH OPTIONAL VERTICAL HEAD
AND OPTIONAL ACCESSORIES
PRICE: F0B BELL MACHINERY -------110L------------ $ P.O.R.
