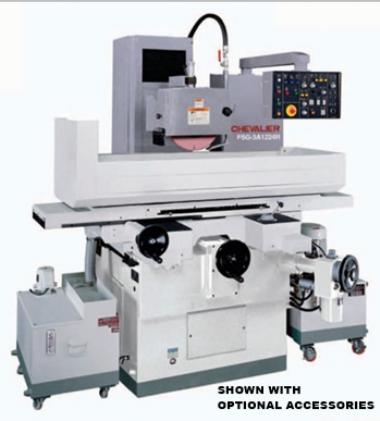

NEW  CHEVALIER FSG-3A1224 GRINDER
NEW CHEVALIER 3A1224 SURFACE GRINDER (TAIWAN)
Table Size
12" x 24"
Max. Grinding Length
24"
Max. Grindng Width
12"
Table to Spindle Ctr
24.75"
Standard Mag Chuck
12" x 24"
Max Travel - Long
27.5"
Max Travel - Cross
14.5"
Grinding Wheel
14"W  x 5"B
Spindle Motor
5 hp/1750 rpm
Hydraulic Pump Motor
2 hp
Weight
4,630 lbs
3 Axis Power Feed c/w
     Surface & Plunge Cycles
Double V Guide Way with Turcite
      Spindle Runout
4 High Prec Ang Contact Bearings
Wheelhead Rise Automatically and
 Parks Automatically at End of Cycle
Micro Downfeed (0.0001")
New Microprocessore Control
Diamond Dresser c/w Diamond
Splash Guard & Nozzle
Halogen Light
Balancing arbor
220/3/60 Electrics
QAI Certified to CSA SPE 1000
Manual
PRICE:
FOB BELL MACHINERY WAREHOUSE
$ 49,900.00
