NEW EQUIPMENT
USED EQUIPMENT
SALES TAXES: EXTRA AS APPLICABLE
EQUIPMENT AND FEATURES INCLUDED:
OPTIONAL ACCESSORIES: UPON REQUEST
NEW CHEVALIER FSG-24 ADS GRINDER

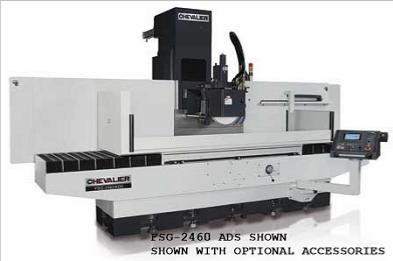

NEW CHEVALIER 2440/60/80ADS SURFACE GRINDER (TAIWAN)
|
Table Size
|
24" x 40"/60"/80"
|
|
Max. Grinding Length
|
40"/60"/80"
|
|
Max. Grindng Width
|
23"
|
|
Table to Spindle Ctr
|
33.5"
|
|
Standard Mag Chuck
|
24" x 40"
|
|
Standard Mag Chuck
|
24" x 30"(2)
|
|
Standard Mag Chuck
|
24" x 40"(2)
|
|
Max Travel - Long
|
43"/63"/82"
|
|
Max Travel - Cross
|
24"
|
|
Grinding Wheel
|
16"W x 5"B
|
|
Spindle Motor
|
15 hp/1740 rpm
|
|
Electrics
|
230/3/60
|
|
Weight
|
20,000 lbs
|
|
PLC Touch Screen 3 Axes Fully Auto
|
|
New 8" TFT High Res Colour Control
|
|
Precision Roller Bearings All 3 Axis
|
|
Heavy Duty Spindle with 2 Sets of
|
|
4 class 7 Super Prec Ang Bearings
|
|
Wheelhead will rise up to start, end or
|
|
Referensce Position
|
|
H & G Cross & Elevating Screws
|
|
H & G Guideways
|
|
AC Servo Control For Downfeed
|
|
Diamond Dresser c/w Diamond
|
|
Splash Guard Assembly
|
|
Halogen Light
|
|
Balancing arbor
|
|
220/3/60 Electrics
|
|
QAI Certified to CSA SPE 1000
|
|
Manual
|
|
PRICE:
|
FOB BELL MACHINERY WAREHOUSE 24" x 40"
|
$182,900.00
|
|
PRICE:
|
FOB BELL MACHINERY WAREHOUSE 24" x 60"
|
$189,900.00
|
|
PRICE:
|
FOB BELL MACHINERY WAREHOUSE 24" x 80"
|
$204,900.00
|
