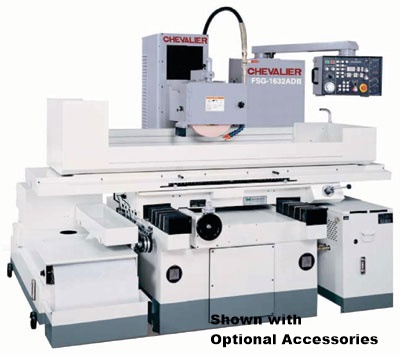

NEW  CHEVALIER FSG-1632ADIII GRINDER
NEW CHEVALIER 1632ADIII SURFACE GRINDER (TAIWAN)
Table Size
16" x 32"
Max. Grinding Length
32"
Max. Grindng Width
16"
Table to Spindle Ctr
24.25"
Standard Mag Chuck
15".75" x 31.5"
Max Travel - Long
33.25"
Max Travel - Cross
18"
Grinding Wheel
14"W  x 5"B
Spindle Motor
5 hp/1750 rpm
Electrics
230/3/60
Weight
6,394 lbs
PLC Touch Screen 3 Axes Fully Auto
New 8" TFT High Res Colour Control
Precision Roller Bearings All 3 Axis
Heavy Duty Spindle with 2 Sets of
   4 class 7 Super Prec Ang Bearings
Wheelhead will rise up to start, end or
    Referensce Position
H & G Cross & Elevating Screws
H & G Guideways
AC Servo Control For Downfeed
Diamond Dresser c/w Diamond
Splash Guard Assembly
Halogen Light
Balancing arbor
220/3/60 Electrics
QAI Certified to CSA SPE 1000
Manual
PRICE:
FOB BELL MACHINERY WAREHOUSE
$ 66,950.00
