SALES TAXES:   EXTRA AS APPLICABLE
EQUIPMENT AND FEATURES INCLUDED:
OPTIONAL ACCESSORIES:   UPON REQUEST

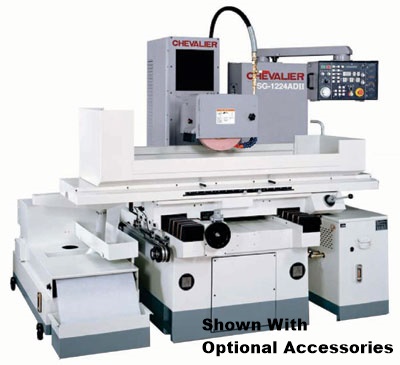

NEW  CHEVALIER FSG-1224ADIII GRINDER
NEW CHEVALIER 1224ADIII SURFACE GRINDER (TAIWAN)
Table Size
12" x 24"
Max. Grinding Length
24"
Max. Grindng Width
12"
Table to Spindle Ctr
24.75"
Standard Mag Chuck
11".75" x 23.62"
Max Travel - Long
27.5"
Max Travel - Cross
14.1"
Grinding Wheel
14"W  x 5"B
Spindle Motor
5 hp/1750 rpm
Hydraulic Pump Motor
2 hp
Weight
4,630 lbs
PLC Touch Screen 3 Axes Fully Auto
New 8" TFT High Res Colour Control
Precision Roller Bearings All 3 Axis
Heavy Duty Spindle with 2 Sets of
   4 class 7 Super Prec Ang Bearings
Wheelhead will rise up to start, end or
    Referensce Position
H & G Cross & Elevating Screws
H & G Guideways
Diamond Dresser c/w Diamond
Splash Guard Assembly
Halogen Light
Balancing arbor
220/3/60 Electrics
QAI Certified to CSA SPE 1000
Manual
PRICE:
FOB BELL MACHINERY WAREHOUSE
$ 57,900.00
